Description

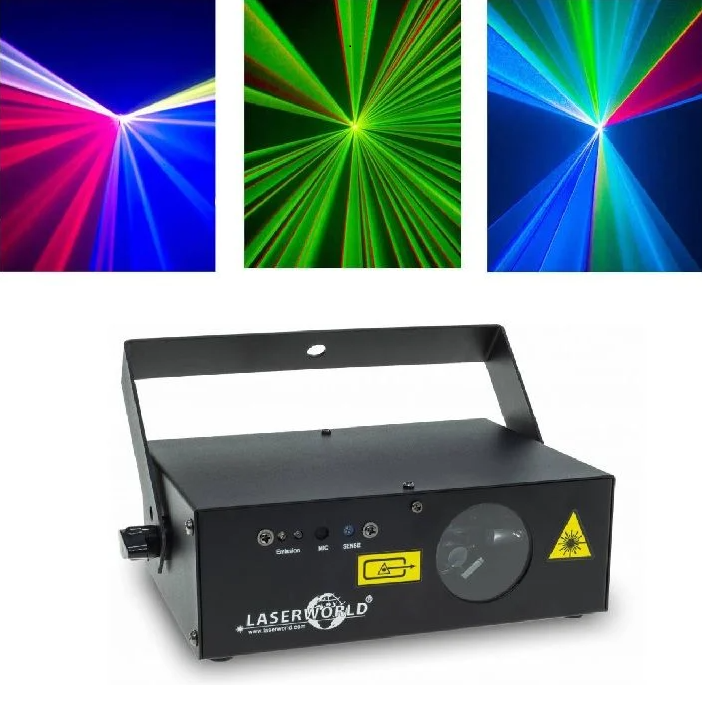

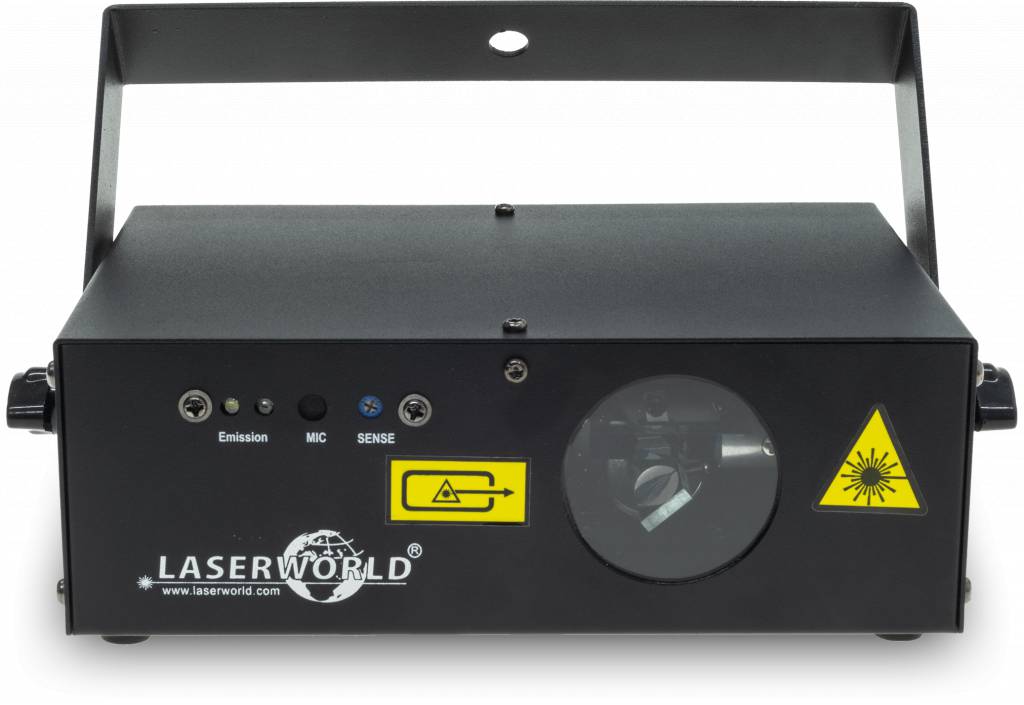

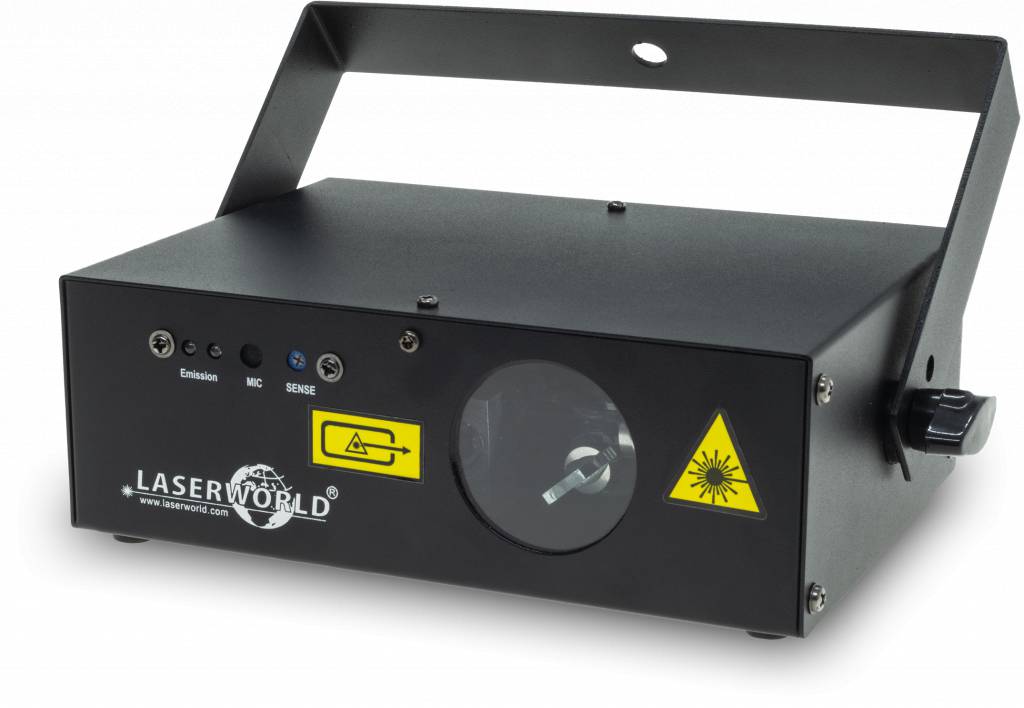

The Laserworld EL-230RGB MK2 is a RGB laser system with a total output power of up to 170 mW.
The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colors and brightness. The beams have a diameter of about ca. 4 mm and a beam divergence of about 1 mrad and the projector offers high-speed step motors, up to 2-5 kpps as well as a scan angle of up to . About ca. 50 (layers, tunnels, fences, waves, etc.) can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted.

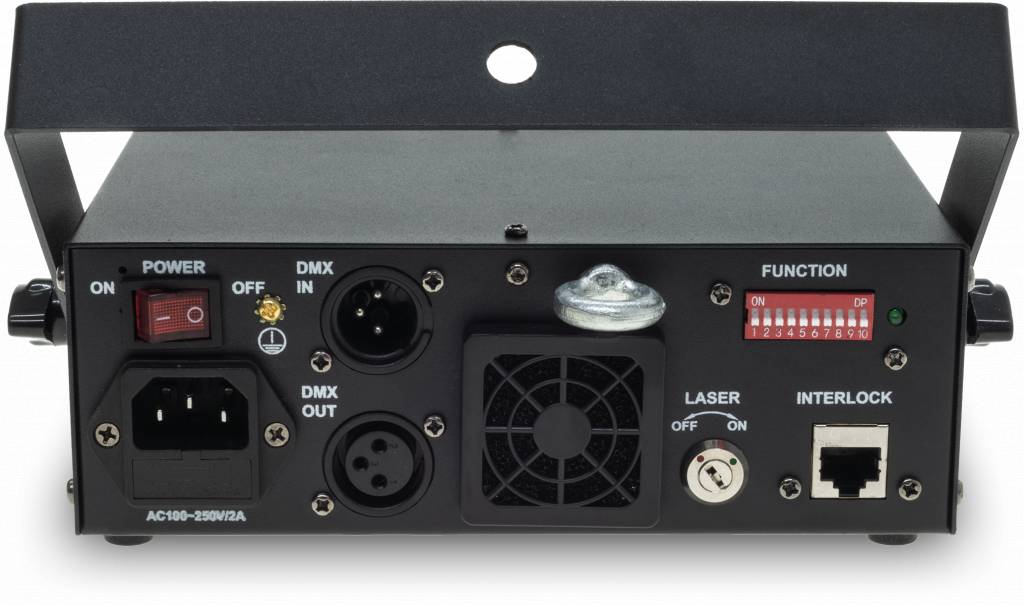

There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.
The Laserworld EL-230RGB MK2 is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use.
With ultra bright 445 nm royal blue!
Features
Compact class 3 RGBW laser with 230 mW of output power
3 mm beam diameter with low beam divergence for focused, sharp effects and patterns
High-speed stepper motors for precise, natural movements
50 preset patterns for eye-catching effects
Built-in microphone with adjustable sensitivity for sound-active mode
Operable via standalone, DMX, or sound-active mode
Dip switches for settings control
Key switch for safe, secure operation
Specifications
Power Supply: 100 - 240 V AC, 50/60 Hz
Power Consumption: 15 W
IP Classifications: IP20
Power Connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Laser Class: Class 3B
Laser Colour: R/G/B
Laser Module:
Red: 70 mW, 638 nm
Green: 25 mW, 532 nm
Blue: 60 mW, 450 nm
Control: Standalone, sound-active, DMX
Housing Colour: Black
Dimensions:
Width: 20.5 cm
Depth: 14.5 cm
Height: 7.0 cm
Weight: 1.92 kg
